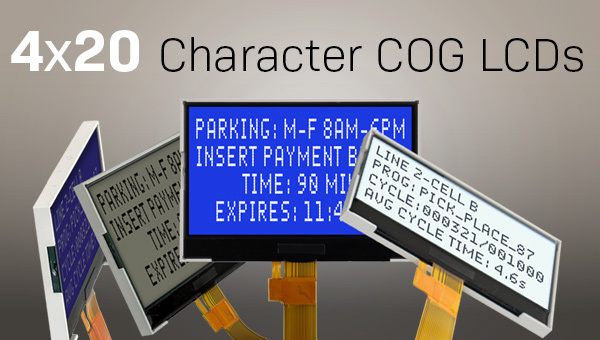

4x20 COG Character LCDs: Compact, Low-Power, High Contrast
Press Release - Elgin, IL | August 11th, 2026
We are excited to expand our COG lineup with new 4x20 character LCD displays in a chip-on-glass design. These modules deliver four lines of twenty characters each in a slimmer, more efficient form factor than traditional chip-on-board modules, and are available in two sizes to fit your design requirements.
Designed as compact, low-power alternatives to conventional character LCD modules, these COG displays feature a smaller footprint and reduced power draw with logic supply current as low as 1.25mA typical. Available in both FSTN positive (transflective) and STN negative blue (transmissive) options with white LED backlights, they are built for strong contrast and consistent readability. The FSTN models remain readable without the backlight in well-lit environments, even in direct sunlight, further reducing power consumption.
Integration is straightforward with selectable 8-bit 6800/8080 parallel, 3/4-wire SPI, or I²C interface options. Connectivity is handled through a 20-pin FFC cable (0.5mm pitch), keeping the design slim and flexible. The built-in IST3602 controller, 3.3V logic supply, and wide operating temperature range of -20°C to +70°C make these displays reliable across a range of environments and system architectures. From industrial controls and medical devices to metering equipment, these 4x20 COG character displays put clear, readable messaging right where your application needs it. Thin, efficient, and built for real-world performance, they’re ready for your next design.
Features
- 4x20 character COG LCD
- Transflective FSTN(+) or Transmissive STN(-) Blue
- 8-bit 6800/8080 Parallel, 3/4-wire SPI, or I²C interface
- Available in two sizes
- Built-in IST3602 controller
- 3.3V logic supply; 3.0V backlight
- 20-pin FFC connection (0.5mm pitch)
- 6:00 optimal viewing angle
- Wide operating temperature range (-20°C to +70°C)
