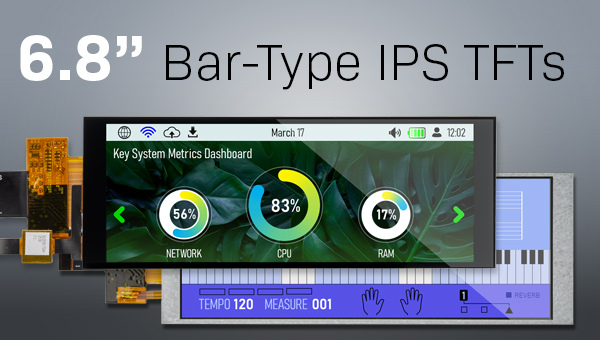

Ultra-Wide 6.8" Bar-Type TFTs That Fit Within 2U Rack Height
Press Release - Elgin, IL | June 23rd, 2026
Designed for space-constrained systems without compromising visual performance, these elongated displays deliver a modern, high-impact interface solution for todays advanced electronic designs. Engineered with advanced IPS technology, the new 6.8” TFTs provide full viewing angles, consistent color accuracy, and exceptional image clarity. With brightness levels reaching a typical 1200 nits, these displays remain crisp and readable even in high ambient light or direct sunlight environments. The sharp 480x1280 resolution offers high pixel density and strong contrast, ensuring detailed graphics.
To support robust, real-world applications, each model integrates built-in EMI shielding to help protect against electromagnetic interference in demanding environments. Designers can select between LVDS or MIPI DSI interfaces for flexible system integration and dependable high-speed data transmission to Arduino or similar development boards. An option with 10-point multi-touch projected capacitive (PCAP) touchscreen with built-in I2C interface is also available for a more intuitive user experience. Both models support landscape or portrait orientations, giving engineers the freedom to optimize for different enclosure requirements.
These new bar-type TFT displays are ideal for industrial automation, automotive systems, telecommunications infrastructure, and high-end consumer electronics. Typical applications include industrial control panels, rack-mounted equipment interfaces, server equipment, automotive media and climate controls, smart home systems, HMI devices, and gaming consoles.
Features
- 6.8” IPS TFT Screens
- 480x1280 pixel resolution
- Slim bar-type (fits 2U rack height)
- Capacitive touchscreen option
- IPS technology with full viewing angles
- Sunlight readable brightness (Typical 1200 nits)
- User selectable MIPI DSI or LVDS interface
- Built-in EMI shielding
- Portrait or landscape orientation
- 40-pin FFC connection
