Engineering Change Notification - NHD-2.7-12864WD: 8/19/24
This notice on August 19th, is to inform you of the change to the following OLED products:
- NHD-2.7-12864WDW3
- NHD-2.7-12864WDW3-CTP
- NHD-2.7-12864WDW3-M
- NHD-2.7-12864WDW3-P
- NHD-2.7-12864WDW3M-CTP
- NHD-2.7-12864WDY3
- NHD-2.7-12864WDY3-CTP
- NHD-2.7-12864WDY3-M
- NHD-2.7-12864WDY3-SL20
- NHD-2.7-12864WDY3M-CTP

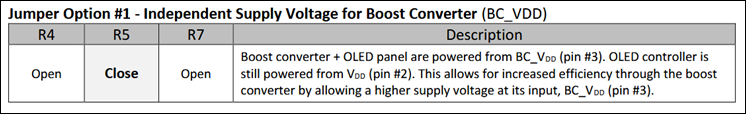

The boost converter IC used in the manufacturing of these displays has been discontinued by the IC manufacturer. This IC has been replaced by a new boost converter with a lower maximum input voltage. This change will only affect customers using jumper option #1 to power the boost converter separately from the display. The previous voltage range for BC_VDD was 3V – 12V. The new voltage range for BC_VDD is 3V – 5.5V.
This change will not affect customers who are using the default jumper setting or jumper option #2.
The new displays will be labeled with a different revision control number on the back of the PCB, underneath the flex cable. See example below.
OLD Design |
NEW Design |
We understand that every customer’s application is unique, and therefore recommend you test and validate samples of the updated design. Samples may be purchased by contacting us at nhsales@newhavendisplay.com. When ordering samples, please specify that you would like to receive the new version.
