NHD-2.4-240320CF-CTXI#-F Display Not Responding

sjdorsay

October 11, 2018 08:07

I am attempting to interface this display with an Arduino as a practice run before I move further into my design. I found this post earlier

https://support.newhavendisplay.com/hc/en-us/community/posts/11071472754711--Sample-Code-for-NHD-2-4-240320CF-CTXI-with-UNO-or-Metro

which has very helpful code. But when I follow the setup described in the files and upload the sketch to my arduino the display just dims a bit.

When I use the example code provided in the Application Notes section there is no visible change. What reasons might be causing this issue?

Comments

3 comments

sjdorsay

October 17, 2018 08:07

When I run the attached code on my display module the display turns off then on which is expected as I send the display off command then the display on command during initialization. After that I attempt to change the screen to a solid colour but there is no change in colour. Maybe there is something wrong with my code. Could someone please review it? It is for the Arduino Uno Rev 3.

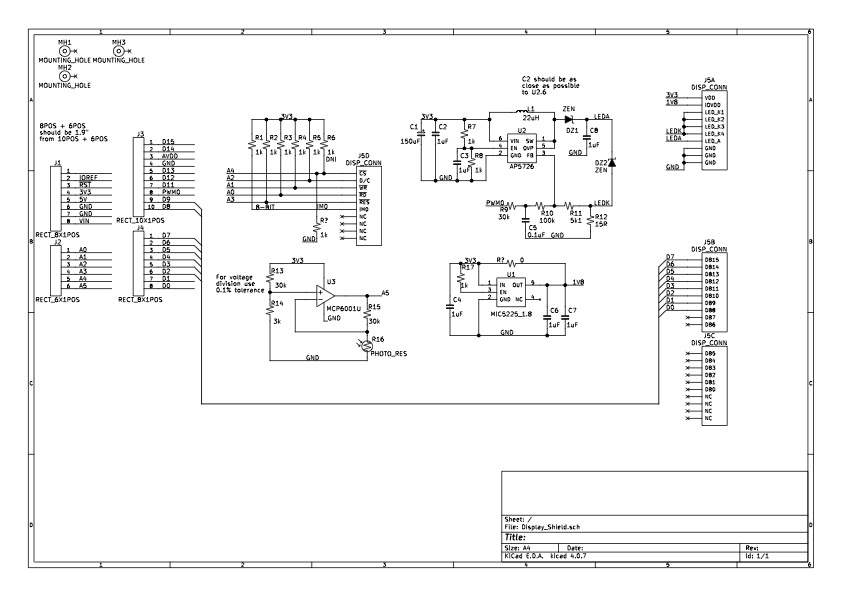

I have also attached a PDF of my schematic in case anyone wants to see if I made a mistake in hardware

/*
 * HW RESET DEFAULT:
 * o 18 bpp
 * o Sleep
 *
 * CONTROL LINES:
 * nCS  - NA, tied to ground
 * nRES - A3
 * DC   - A2
 * nWR  - A1
 * nRD  - A0
 *
 * DATA LINES:
 * D[1:0] - D9:D8
 * D[7:2] - D7:D2
 */

int nRS = A3;   // Active low reset
int DC = A2;    // Data/Command
int nWR = A1;   // Active low write
int nRD = A0;   // Active low read

// 18bpp or 16bpp
#define MODE_18BPP

#ifdef MODE_18BPP
/* 8080-II 8-bit 18 bpp format
 * (0brrrr_rggg_ggbb_bbbx)
 * x: LSB of all colours
 */
#define RED     (0xF800)
#define GREEN   (0x07C0)
#define BLUE    (0x003E)

#else
/* 8080-II 8-bit 16 bpp format
 * (0brrrr_rggg_gggb_bbbb)
 */
#define RED     (0xF800)
#define GREEN   (0x07E0)
#define BLUE    (0x001F)

#endif

void TFT_SEND_CMD(uint8_t cmd) {
  PORTC |= 0x09; // Set nWR and DC pins low

  PORTB &= (0x03 & cmd);
  PORTD &= (0xFC & cmd);

  delayMicroseconds(1);
  PORTC |= 0x0B; // Set nWR pins high
  delayMicroseconds(1);
  PORTC |= 0x0F; // Set DC pin high
}

void TFT_SEND_DATA(uint8_t dat) {
  PORTC |= 0x0D; // Set nWR pin low

  PORTB &= (0x03 & dat);
  PORTD &= (0xFC & dat);

  delayMicroseconds(1);
  PORTC |= 0x0F; // Set nWR pins high
  delayMicroseconds(1);
}

void TFT_INIT(void) {
  // Turn display off
  TFT_SEND_CMD(0x28);
  // Exit sleep mode
  TFT_SEND_CMD(0x11);
  delay(10);

  TFT_SEND_CMD(0x36);

  TFT_SEND_CMD(0x36);    //MADCTL: memory data access control
  TFT_SEND_DATA(0x80);       // MY (row address order) = 1  :: MX,MV,ML,RGB = 0

#ifdef MODE_18BPP
  TFT_SEND_CMD(0x3A);    //COLMOD: Interface Pixel format *** 262K-colors in 18bit/pixel format when using 8-bit interface to allow 3-bytes per pixel
  TFT_SEND_DATA(0x66);
#else
  TFT_SEND_CMD(0x3A);  //COLMOD: Interface Pixel format  *** 65K-colors in 16bit/pixel (5-6-5) format when using 16-bit interface to allow 1-byte per pixel
  TFT_SEND_DATA(0x55);
#endif

  TFT_SEND_CMD(0xB2);    //PORCTRK: Porch setting
  TFT_SEND_DATA(0x0C);
  TFT_SEND_DATA(0x0C);
  TFT_SEND_DATA(0x00);
  TFT_SEND_DATA(0x33);
  TFT_SEND_DATA(0x33);

  TFT_SEND_CMD(0xB7);    //GCTRL: Gate Control
  TFT_SEND_DATA(0x35);

  TFT_SEND_CMD(0xBB);    //VCOMS: VCOM setting
  TFT_SEND_DATA(0x2B);

  TFT_SEND_CMD(0xC0);    //LCMCTRL: LCM Control
  TFT_SEND_DATA(0x2C);

  TFT_SEND_CMD(0xC2);    //VDVVRHEN: VDV and VRH Command Enable
  TFT_SEND_DATA(0x01);
  TFT_SEND_DATA(0xFF);

  TFT_SEND_CMD(0xC3);    //VRHS: VRH Set
  TFT_SEND_DATA(0x11);

  TFT_SEND_CMD(0xC4);    //VDVS: VDV Set
  TFT_SEND_DATA(0x20);

  TFT_SEND_CMD(0xC6);    //FRCTRL2: Frame Rate control in normal mode
  TFT_SEND_DATA(0x0F);

  TFT_SEND_CMD(0xD0);    //PWCTRL1: Power Control 1
  TFT_SEND_DATA(0xA4);
  TFT_SEND_DATA(0xA1);

  TFT_SEND_CMD(0xE0);    //PVGAMCTRL: Positive Voltage Gamma control
  TFT_SEND_DATA(0xD0);
  TFT_SEND_DATA(0x00);
  TFT_SEND_DATA(0x05);
  TFT_SEND_DATA(0x0E);
  TFT_SEND_DATA(0x15);
  TFT_SEND_DATA(0x0D);
  TFT_SEND_DATA(0x37);
  TFT_SEND_DATA(0x43);
  TFT_SEND_DATA(0x47);
  TFT_SEND_DATA(0x09);
  TFT_SEND_DATA(0x15);
  TFT_SEND_DATA(0x12);
  TFT_SEND_DATA(0x16);
  TFT_SEND_DATA(0x19);

  TFT_SEND_CMD(0xE1);    //NVGAMCTRL: Negative Voltage Gamma control
  TFT_SEND_DATA(0xD0);
  TFT_SEND_DATA(0x00);
  TFT_SEND_DATA(0x05);
  TFT_SEND_DATA(0x0D);
  TFT_SEND_DATA(0x0C);
  TFT_SEND_DATA(0x06);
  TFT_SEND_DATA(0x2D);
  TFT_SEND_DATA(0x44);
  TFT_SEND_DATA(0x40);
  TFT_SEND_DATA(0x0E);
  TFT_SEND_DATA(0x1C);
  TFT_SEND_DATA(0x18);
  TFT_SEND_DATA(0x16);
  TFT_SEND_DATA(0x19);

  // Set Window Size to 240x320
  TFT_SEND_CMD(0x2A);    //X address set
  TFT_SEND_DATA(0x00);       // Start from...
  TFT_SEND_DATA(0x00);       // .... 0
  TFT_SEND_DATA(0x00);       // End at...
  TFT_SEND_DATA(0xEF);       // ... 239

  TFT_SEND_CMD(0x2B);    //Y address set
  TFT_SEND_DATA(0x00);       // Start from...
  TFT_SEND_DATA(0x00);       // ... 0
  TFT_SEND_DATA(0x01);       // End at...
  TFT_SEND_DATA(0x3F);       // ... 319
  delay(10);

  TFT_SEND_CMD(0x29);  //fill_display ON
  delay(10);
}

void COLOUR_DISPLAY(uint16_t colour)
{
  uint8_t colourR;
  uint8_t colourG;
  uint8_t colourB;

#ifdef MODE_18BPP
  // (0brrrr_rggg_ggbb_bbbx)
  colourR = (byte) (colour >> 10)&(0x3E);
  colourR |= (colour)&(0x01);
  colourR <<= 2;

  colourG = (byte) (colour >> 5)&(0x3E);
  colourG |= (colour)&(0x01);
  colourG <<= 2;

  colourB = (byte) (colour << 2)&(0xFC);

#else
  // (0brrrr_rggg_gggb_bbbb)
  colourR = highByte(colour);
  colourG = lowByte(colour);
#endif

  TFT_SEND_CMD(0x2C);          //command to begin writing to frame memory

  for(int x=0; x < 320; x++)
  {
    for(int y=0; y < 240; y++)
    {
      TFT_SEND_DATA(colourR);     // Red    0bDDDDDDxx
      TFT_SEND_DATA(colourG);     // Green  0bDDDDDDxx      // x =don't care; D = 0 or 1

      #ifdef MODE_18BPP
      TFT_SEND_DATA(colourB);     // Blue   0bDDDDDDxx
      #endif
    }
  }
}

void setup() {
  DDRD |= 0xFC;  // PORTD[7:2]
  PORTD &= 0x03;

  DDRB |= 0x03;  // PORTB[1:0]
  PORTB &= 0xFC;

  DDRC |= 0x0F;  // PORTC[3:0]
  PORTC |= 0x0F; // Control pins are active low, so set the Control pins high

  digitalWrite(nRS, LOW);
  delayMicroseconds(15);
  digitalWrite(nRS, HIGH);
  delay(150);

  TFT_INIT();
}

void loop() {
  delay(1000);
  COLOUR_DISPLAY(RED);

  delay(1000);
  COLOUR_DISPLAY(GREEN);

  delay(1000);
  COLOUR_DISPLAY(BLUE);
}

sjdorsay

October 18, 2018 08:07
There were many issues with the schematic that I posted before which have been addressed and reflects the current implementation of my board (with the exception of the voltage translator).

I noticed that the Arduino uses 5V logic whereas the LCD requires 3.3V logic. This may have damaged the digital interface although I am not convinced this is the case. I ported the code onto an STM32F411RE on the NUCLEO-F411RE which uses 3.3V logic but there is no change to the behaviour.

I am thinking the issue is likely hardware base. A quick calculation using this calculator https://www.allaboutcircuits.com/tools/microstrip-crosstalk-calculator/ gives a cross-talk of about 1.14 V which may be enough to interfere with the interface.
0
sjdorsay

October 19, 2018 08:07
I finally have my display changing colours. However, the colours being displayed aren't the correct ones. For example when I send 0xF800 (Red) I get cyan. When I send 0x001F (blue) I get yellow. I am using the 8-bit parallel bus with 16 bpp (565 RGB). I will just treat it as a CMYK display.

For anyone who might have similar issues here is what I went through to get my display working.

Arduino:
1) 5V logic needed to be shifted down to 3.3V logic
2) Avoid using digital pins 0 and 1

Nucleo-F411RE:
1) Some of my jumper connections were not strong enough
2) Continue avoiding digital pins 0 and 1
3) Add delays after data bus is set to ignore cross talk interference
0
