Breakout Board pinout mismatch NHD-TFT40
The Breakout Board for TFT Displays - 40 Pin FFC, Model: NHD-TFT40, says that its compatible with the

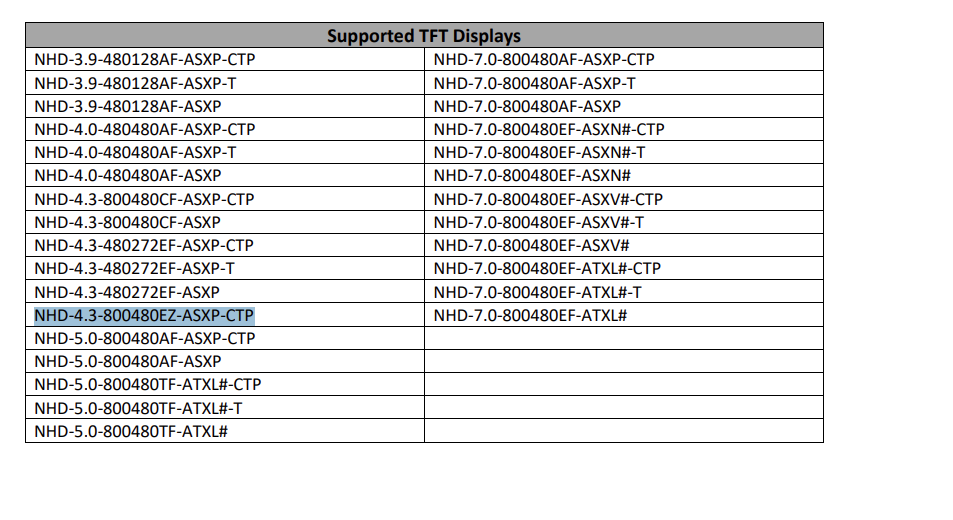

NHD-4.3-800480EZ-ASXP-CTP
However they don't have compatible pinouts.

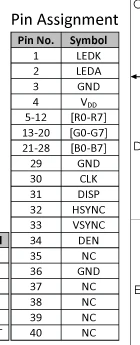

Pinout of the NHD-4.3-800480EZ-ASXP-CTP
Pinout of the NHD-TFT40
Is this a typo? I'm also certain they aren't compatible based on the pinout tables
-
Official comment
Hi Dax,
Thank you for reaching out regarding the NHD-4.3-800480EZ-ASXP-CTP.
This display is compatible with the NHD-TFT40. I believe you are confusing the pinout of the breakout board and the pinout of the FFC connector that the display plugs into. Please see the screenshot below.

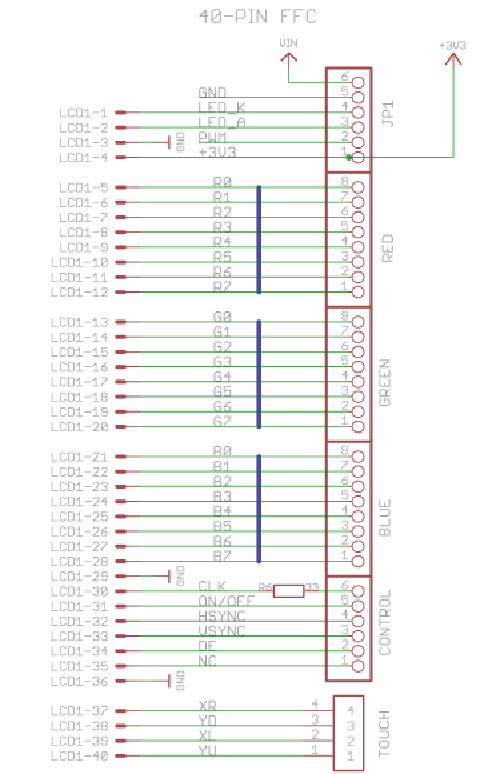

This is the pinout for the FFC connector that the display plugs into. As seen above, this pinout matches the pinout of the NHD-4.3-800480EZ-ASXP-CTP. This can be found on the schematic page in the NHD-TFT40 datasheet.

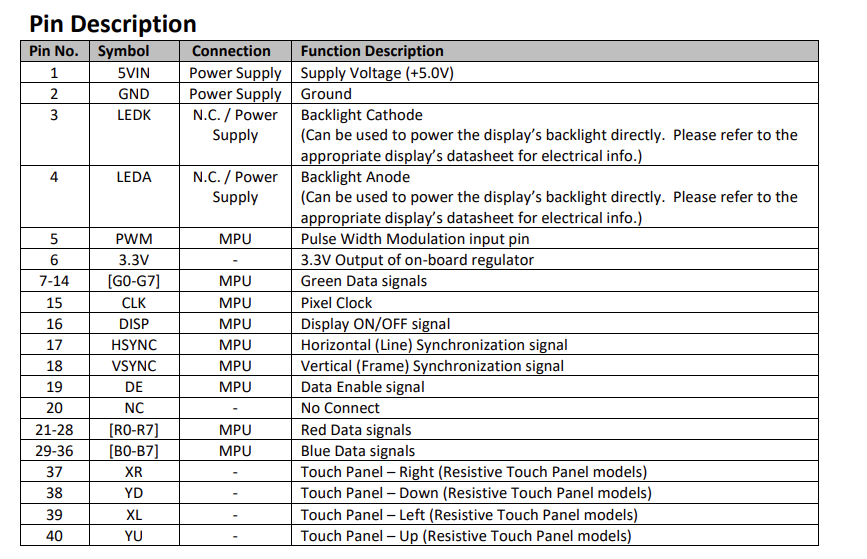

The pin description table in the NHD-TFT40 datasheet refers to the following:
The top row is pins 1-20 (left to right) and the bottom row is pins 21-40 (left to right). Please let me know if this was helpful and if you have any other questions.
