NHD-1.69-160128ASC3 display sensor/analog readings with Teensy 4.0
Hi,
This is my first project with OLED display
I was able to run the example code from Serial Color OLED User Guide with Teensy 4.0 (arduino based micro controller).
However, I'm having trouble displaying sensor or analog readings.
My goal is to display real time sensor values but... I just can't pass the variables from Teensy4.0 to OLED display.
Is there a certain way to write a function to display arduino pin values to NHD-1.69-160128ASC3 display?
This is my first project with OLED display
I was able to run the example code from Serial Color OLED User Guide with Teensy 4.0 (arduino based micro controller).
However, I'm having trouble displaying sensor or analog readings.
My goal is to display real time sensor values but... I just can't pass the variables from Teensy4.0 to OLED display.
Is there a certain way to write a function to display arduino pin values to NHD-1.69-160128ASC3 display?
« Last Edit: January 28, 2020, 06:06:01 PM by ART »
0
-

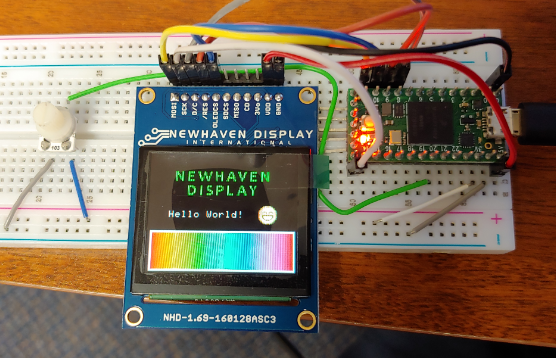

I forgot to upload my set up.
I hope this photo helps.
0 -
Hi ART,
Sorry to hear you've been experiencing issues with display sensor or analog readings. Unfortunately none of our example code utilizes how to incorporate external components with our display. However it is a good sign at least the example code is running as expected.
For further assistance, it may be more beneficial in researching existing Arduino/Teensy forum posts for other users who may have encountered this issue, or create a new post on the Arduino forums for further assistance.
Best,0
